Public Types
typedef Teuchos::RCP< Domain< SC, LO, GO, NO > >	DomainPtr_Type

typedef std::vector< DomainPtr_Type >	DomainPtrArray_Type

typedef Teuchos::RCP< const Domain< SC, LO, GO, NO > >	DomainConstPtr_Type

typedef Mesh< SC, LO, GO, NO >	Mesh_Type

typedef Teuchos::RCP< Mesh_Type >	MeshPtr_Type

typedef Teuchos::RCP< const Mesh_Type >	MeshConstPtr_Type

typedef MeshStructured< SC, LO, GO, NO >	MeshStr_Type

typedef Teuchos::RCP< MeshStr_Type >	MeshStrPtr_Type

typedef MeshUnstructured< SC, LO, GO, NO >	MeshUnstr_Type

typedef Teuchos::RCP< MeshUnstr_Type >	MeshUnstrPtr_Type

typedef std::vector< MeshUnstrPtr_Type >	MeshUnstrPtrArray_Type

typedef MeshUnstr_Type::MeshInterfacePtr_Type	MeshInterfacePtr_Type

typedef Mesh_Type::Elements_Type	Elements_Type

typedef Mesh_Type::ElementsPtr_Type	ElementsPtr_Type

typedef MultiVector< SC, LO, GO, NO >	MultiVector_Type

typedef Teuchos::RCP< MultiVector_Type >	MultiVectorPtr_Type

typedef Teuchos::RCP< const MultiVector_Type >	MultiVectorPtrConst_Type

typedef Map< LO, GO, NO >	Map_Type

typedef Teuchos::RCP< Map_Type >	MapPtr_Type

typedef Teuchos::RCP< const Map_Type >	MapConstPtr_Type

typedef Teuchos::Comm< int >	Comm_Type

typedef Teuchos::RCP< const Comm_Type >	CommConstPtr_Type

typedef std::vector< GO >	vec_GO_Type

typedef std::vector< vec_GO_Type >	vec2D_GO_Type

typedef std::vector< vec2D_GO_Type >	vec3D_GO_Type

typedef Teuchos::RCP< vec3D_GO_Type >	vec3D_GO_ptr_Type

Public Member Functions
	Domain ()
	Constructor.

	Domain (CommConstPtr_Type comm)
	Constructor.

	Domain (CommConstPtr_Type comm, int dimension)
	Constructor.

	Domain (vec_dbl_Type coor, double l, double h, CommConstPtr_Type comm)
	Constructor for 2D structured meshes build in FEDDLib.

	Domain (vec_dbl_Type coor, double l, double w, double h, CommConstPtr_Type comm)
	Constructor for 3D strucutred meshes build in FEDDLib.

void	initializeFEData ()
	initializeFEData

vec_int_ptr_Type	getElementsFlag () const
	Returns flags of elements as vector of type int.

void	info () const
	Information about the domain.

void	buildMesh (int flags, std::string meshType, int dim, std::string FEType, int N, int M, int numProcsCoarseSolve=0)
	Build structured mesh in FEDDLib.

LO	getApproxEntriesPerRow () const
	Estimate depending on FEType and dimension for the numer of entries in system matrix, as approximate number of entries is requiered for matrix initialization. This serves as a upper bound.

UN	getDimension () const
	Get dimension.

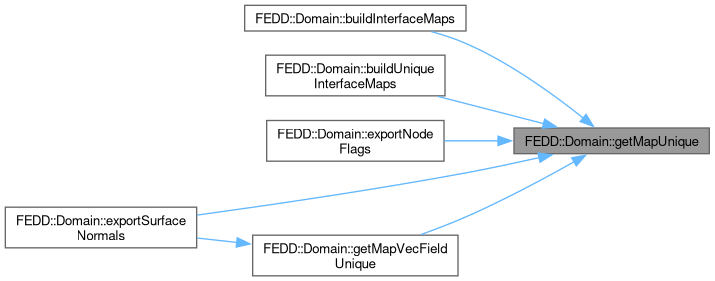

MapConstPtr_Type	getMapUnique () const
	Get map of all uniquely distributed nodes of the processors.

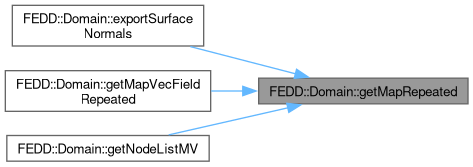

MapConstPtr_Type	getMapRepeated () const
	Get map of all repeated (not uniquely distributed) nodes of processors.

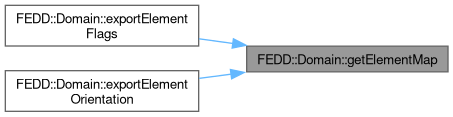

MapConstPtr_Type	getElementMap () const
	Get map of elements.

MapConstPtr_Type	getEdgeMap () const
	Get map of edges.

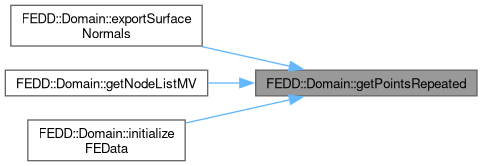

vec2D_dbl_ptr_Type	getPointsRepeated () const
	Get vector of repeated points (on your processor). 2D Vector with size: numPoints x dim.

vec2D_dbl_ptr_Type	getPointsUnique () const
	Get vector of unique points (on your processor). 2D Vector with size: numPoints x dim.

vec_int_ptr_Type	getBCFlagRepeated () const
	Get vector of the flags corrsponding to the repeated points (on your processor)

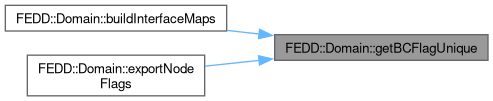

vec_int_ptr_Type	getBCFlagUnique () const
	Get vector of the flags corrsponding to the unique points (on your processor)

vec2D_int_ptr_Type	getElements () const
	Get the elements (on your processor) as vector data type.

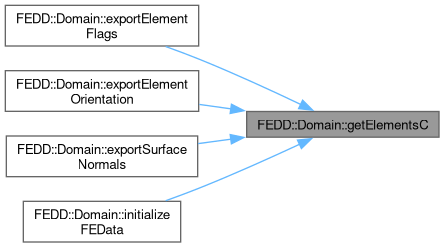

ElementsPtr_Type	getElementsC () const
	Get the elements (on your processor) as Elements_Type.

MapConstPtr_Type	getMapVecFieldUnique () const
	Get map of all unique (not uniquely distributed) nodes of processors in a vector field point of view. Here, a node has more than one degree of freedom. For Example in with dofs=2: 1_x , 1_y , 2_x , 2_y ,... . This degree of freedom map captures this.

MapConstPtr_Type	getMapVecFieldRepeated () const

std::string	getFEType () const
	Finite element discretization. Represented as string, i.e., P2.

CommConstPtr_Type	getComm () const
	Communicator.

void	readMesh (std::string filename, std::string delimiter, int dim, std::string FEType, int volumeID=10)
	Reading mesh from .mesh file with name 'filename'.

void	readMeshSize (std::string filename, std::string delimiter)
	Reading mesh size.

void	partitionMesh (bool partitionDistance=false)
	Partition mesh according to number of processors. Partition with parmetis.

void	readAndPartitionMesh (std::string filename, std::string delimiter, int dim, std::string FEType, int volumeID=10)
	Function called when mesh is read and paritioned. In turn it calls readMesh(...) and partitionMesh(...)

void	buildP2ofP1Domain (DomainPtr_Type domainP1)
	Building a P2 mesh from the P1 one mesh. We generally habe P1-input meshes and build the P2 mesh on top of that.

void	initWithDomain (DomainPtr_Type domainsP1)
	Initialize domain with already existing domain.

void	setMesh (MeshUnstrPtr_Type meshUnstr)
	Settng mesh from domain.

void	initDummyMesh (MapPtr_Type map)
	Initialize dummy mesh for i.e. lagrange multiplier that only represents on 'point' in that sense. i.e. for setting pressure mean value in P2-P1 stokes problem. This is necassary if a variable does not live on a mesh.

void	buildUniqueInterfaceMaps ()
	Build unique node and dof interfaceMap in interface numbering.

void	setPartialCoupling (int flag, std::string type)
	Set partial coupling.

void	buildGlobalInterfaceMaps ()
	Build interface maps with global numbering with indicesGlobalMatchedUnique_.

void	buildInterfaceMaps ()
	Build interface maps.

MapConstPtr_Type	getInterfaceMapUnique () const
	Get interface map unique.

MapConstPtr_Type	getInterfaceMapVecFieldUnique () const
	Get interface vector field map unique.

MapConstPtr_Type	getGlobalInterfaceMapVecFieldPartial () const
	Get global interface map vector field partial.

MapConstPtr_Type	getOtherGlobalInterfaceMapVecFieldPartial () const
	Get other global interface map vec field partial.

MapConstPtr_Type	getGlobalInterfaceMapUnique () const
	Get interface map unique (for fsi coupling block c4)

MapConstPtr_Type	getGlobalInterfaceMapVecFieldUnique () const
	Get interface vec field map unique (for fsi coupling block c4)

MapConstPtr_Type	getOtherGlobalInterfaceMapVecFieldUnique () const
	Get other interface vec field map unique (for fsi coupling block c4)

GO	getNumElementsGlobal () const
	Get global number of elements.

LO	getNumElements () const
	Get local number of elements (on your processor)

LO	getNumPoints (std::string type="Unique") const
	Get local number of points of type 'type' (unique/repeated)

int	checkGeomentry (std::string MeshType, int dim) const
	Checks geometriy.

void	identifyInterfaceParallelAndDistance (DomainPtr_Type domainOther, vec_int_Type interfaceID_vec)
	Itentify interface parallal and distance.

void	calculateDistancesToInterface ()
	Calculate distance to interface.

vec_dbl_ptr_Type	getDistancesToInterface () const
	Get distances to interface.

void	partitionDistanceToInterface ()
	Partition distance to interface.

void	setReferenceConfiguration ()
	Set reference configuration.

void	moveMesh (MultiVectorPtr_Type displacementUnique, MultiVectorPtr_Type displacementRepeated)
	Move mesh according to displacement (i.e. used in FSI)

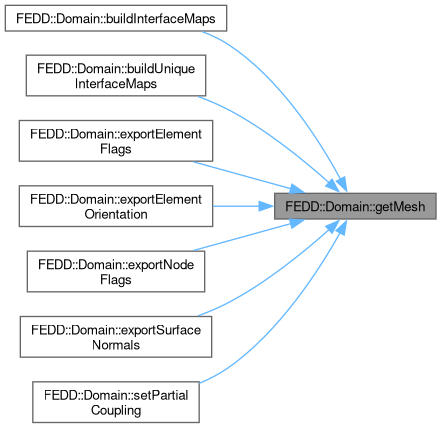

MeshPtr_Type	getMesh ()
	Get mesh.

MeshConstPtr_Type	getMesh () const
	Get mesh constant.

void	initializeUnstructuredMesh (int dimension, std::string feType, int volumeID=10, std::string meshUnit="cm", bool convertToCM=false)
	Generally the domain object holds only meshes from type 'Mesh'. If we read a mesh from file it becomes the type 'MeshUnstructured' and needs to be initialized.

void	toNodeID (UN dim, GO dofID, GO &nodeID, LO &localDofNumber)
	Hilfsfunktion fuer buildLocalInterfaceIDInGlobal(). Gibt fuer eine gegebene nodeID die entsprechende dofID und umgekehrt. localDofNumber entspricht dem Rest der Division, also ob es sich um die x- (=0), y- (=1) oder z-Komponente (=2) handelt.

void	toDofID (UN dim, GO nodeID, LO localDofNumber, GO &dofID)
	Hilfsfunktion fuer buildLocalInterfaceIDInGlobal(). Gibt fuer eine gegebene nodeID die entsprechende dofID und umgekehrt. localDofNumber entspricht dem Rest der Division, also ob es sich um die x- (=0), y- (=1) oder z-Komponente (=2) handelt.

vec_long_Type	getLocalInterfaceIDInGlobal () const
	Get local interface id in global.

void	setDummyInterfaceDomain (DomainPtr_Type domain)
	Set dummy interface domain.

int	findInPointsUnique (const vec_dbl_Type &x) const
	Find in points unique.

MultiVectorPtr_Type	getNodeListMV () const
	Get node list in multi vector point.

void	exportMesh (bool exportEdges=false, bool exportSurfaces=false, std::string exportMesh="export.mesh")
	Exporting Mesh.

void	preProcessMesh (bool correctSurfaceNormals, bool correctElementDirection)
	Option of preprocessing mesh by making consistent outward normal and/or consistent element orientation, where we always have positive det of transformation to reference element.

void	exportElementFlags (std::string name="default")
	Exporting Paraview file displaying element flags of the underlying mesh.

void	exportNodeFlags (std::string name="default")
	Exporting Paraview file displaying node flags of the underlying mesh.

void	exportSurfaceNormals (std::string name="default")
	Exporting Paraview file displaying surface normals of the underlying mesh. As we are generally not able to plot only the surfaces, the normals are displayed in each node. This means, that at corners, the visualization is incorrect (i.e. node belongs to surfaces which are in different directions)

void	exportElementOrientation (std::string name="default")
	Exporting Paraview file displaying element volume of underlying mesh.

void	exportDistribution (std::string name="default")
	Exporting Paraview file displaying distribution of elements to the differnt cores.

Constructor & Destructor Documentation

◆ Domain() [1/4]

template<class SC, class LO, class GO, class NO>

Domain::Domain ( CommConstPtr_Type comm )

Constructor.

Parameters

[in] comm

◆ Domain() [2/4]

template<class SC, class LO, class GO, class NO>

Domain::Domain	(	CommConstPtr_Type	comm,
		int	dimension )

Constructor.

Parameters

[in]	comm
[in]	dimension

◆ Domain() [3/4]

template<class SC, class LO, class GO, class NO>

Domain::Domain	(	vec_dbl_Type	coor,
		double	l,
		double	h,
		CommConstPtr_Type	comm )

Constructor for 2D structured meshes build in FEDDLib.

Parameters

[in]	coor
[in]	l
[in]	h
[in]	comm

◆ Domain() [4/4]

template<class SC, class LO, class GO, class NO>

Domain::Domain	(	vec_dbl_Type	coor,
		double	l,
		double	w,
		double	h,
		CommConstPtr_Type	comm )

Constructor for 3D strucutred meshes build in FEDDLib.

Parameters

[in]	coor
[in]	l	length
[in]	w	width
[in]	h	height
[in]	comm

Member Function Documentation

◆ buildMesh()

template<class SC, class LO, class GO, class NO>

void Domain::buildMesh	(	int	flags,
		std::string	meshType,
		int	dim,
		std::string	FEType,
		int	N,
		int	M,
		int	numProcsCoarseSolve = 0 )

Build structured mesh in FEDDLib.

Parameters

[in]	flags
[in]	meshType
[in]	dim
[in]	FEType	discretization
[in]	N
[in]	M
[in]	numProcsCoarseSolve

◆ buildP2ofP1Domain()

template<class SC, class LO, class GO, class NO>

void Domain::buildP2ofP1Domain ( DomainPtr_Type domainP1 )

Building a P2 mesh from the P1 one mesh. We generally habe P1-input meshes and build the P2 mesh on top of that.

Parameters

[in] domainP1 the domain with the mesh we read from .mesh file

◆ checkGeomentry()

template<class SC, class LO, class GO, class NO>

int Domain::checkGeomentry	(	std::string	MeshType,
		int	dim ) const

Checks geometriy.

Parameters

[in]	MeshType
[in]	dim

Returns

◆ exportDistribution()

template<class SC, class LO, class GO, class NO>

void Domain::exportDistribution ( std::string name = "default" )

Exporting Paraview file displaying distribution of elements to the differnt cores.

Parameters

name	export suffix to identify flags

Here is the call graph for this function:

◆ exportElementFlags()

template<class SC, class LO, class GO, class NO>

void Domain::exportElementFlags ( std::string name = "default" )

Exporting Paraview file displaying element flags of the underlying mesh.

Parameters

name

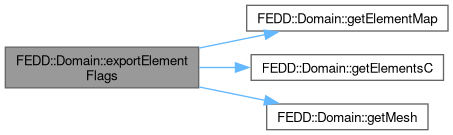

Here is the call graph for this function:

◆ exportElementOrientation()

template<class SC, class LO, class GO, class NO>

void Domain::exportElementOrientation ( std::string name = "default" )

Exporting Paraview file displaying element volume of underlying mesh.

Parameters

name	export suffix to identify flags

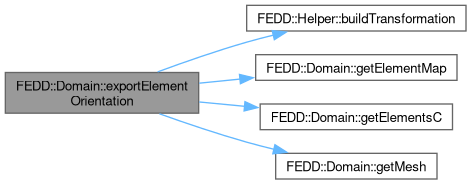

Here is the call graph for this function:

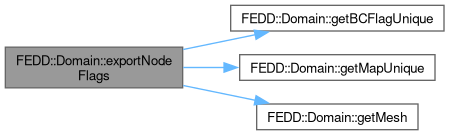

◆ exportNodeFlags()

template<class SC, class LO, class GO, class NO>

void Domain::exportNodeFlags ( std::string name = "default" )

Exporting Paraview file displaying node flags of the underlying mesh.

Parameters

name	export suffix to identify flags

Here is the call graph for this function:

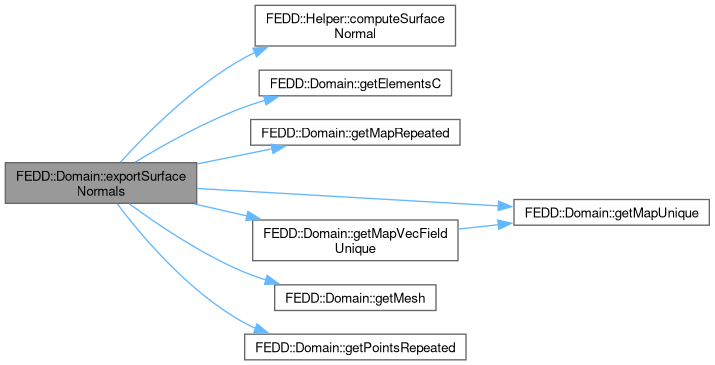

◆ exportSurfaceNormals()

template<class SC, class LO, class GO, class NO>

void Domain::exportSurfaceNormals ( std::string name = "default" )

Exporting Paraview file displaying surface normals of the underlying mesh. As we are generally not able to plot only the surfaces, the normals are displayed in each node. This means, that at corners, the visualization is incorrect (i.e. node belongs to surfaces which are in different directions)

Parameters

name	export suffix to identify flags

Here is the call graph for this function:

◆ findInPointsUnique()

template<class SC, class LO, class GO, class NO>

int Domain::findInPointsUnique ( const vec_dbl_Type & x ) const

Find in points unique.

Parameters

[in] x point to be found in unique nodes

Here is the call graph for this function:

◆ getApproxEntriesPerRow()

template<class SC, class LO, class GO, class NO>

LO Domain::getApproxEntriesPerRow ( ) const

Estimate depending on FEType and dimension for the numer of entries in system matrix, as approximate number of entries is requiered for matrix initialization. This serves as a upper bound.

Returns: approxEntriesPerRow

◆ getBCFlagRepeated()

template<class SC, class LO, class GO, class NO>

vec_int_ptr_Type Domain::getBCFlagRepeated ( ) const

Get vector of the flags corrsponding to the repeated points (on your processor)

Returns: BCFlagsRepeated

◆ getBCFlagUnique()

template<class SC, class LO, class GO, class NO>

vec_int_ptr_Type Domain::getBCFlagUnique ( ) const

Get vector of the flags corrsponding to the unique points (on your processor)

Returns: BCFlagsUnique

Here is the caller graph for this function:

◆ getComm()

template<class SC, class LO, class GO, class NO>

Domain< SC, LO, GO, NO >::CommConstPtr_Type Domain::getComm ( ) const

Communicator.

Returns: comm

Here is the caller graph for this function:

◆ getDimension()

template<class SC, class LO, class GO, class NO>

UN Domain::getDimension ( ) const

Get dimension.

Returns: dimension

Here is the caller graph for this function:

◆ getDistancesToInterface()

template<class SC, class LO, class GO, class NO>

vec_dbl_ptr_Type Domain::getDistancesToInterface ( ) const

Get distances to interface.

Returns

◆ getEdgeMap()

template<class SC, class LO, class GO, class NO>

Domain< SC, LO, GO, NO >::MapConstPtr_Type Domain::getEdgeMap ( ) const

Get map of edges.

Returns: edgeMap

◆ getElementMap()

template<class SC, class LO, class GO, class NO>

Domain< SC, LO, GO, NO >::MapConstPtr_Type Domain::getElementMap ( ) const

Get map of elements.

Returns: elementMap

Here is the caller graph for this function:

◆ getElements()

template<class SC, class LO, class GO, class NO>

vec2D_int_ptr_Type Domain::getElements ( ) const

Get the elements (on your processor) as vector data type.

Returns: elements

◆ getElementsC()

template<class SC, class LO, class GO, class NO>

Domain< SC, LO, GO, NO >::ElementsPtr_Type Domain::getElementsC ( ) const

Get the elements (on your processor) as Elements_Type.

Returns: elementsC

Here is the caller graph for this function:

◆ getElementsFlag()

template<class SC, class LO, class GO, class NO>

vec_int_ptr_Type Domain::getElementsFlag ( ) const

Returns flags of elements as vector of type int.

Returns: elementFlags

◆ getFEType()

template<class SC, class LO, class GO, class NO>

std::string Domain::getFEType ( ) const

Finite element discretization. Represented as string, i.e., P2.

Returns: FEType

◆ getGlobalInterfaceMapUnique()

template<class SC, class LO, class GO, class NO>

Domain< SC, LO, GO, NO >::MapConstPtr_Type Domain::getGlobalInterfaceMapUnique ( ) const

Get interface map unique (for fsi coupling block c4)

Returns: globalInterfaceMapUnique

◆ getGlobalInterfaceMapVecFieldPartial()

template<class SC = default_sc, class LO = default_lo, class GO = default_go, class NO = default_no>

MapConstPtr_Type FEDD::Domain< SC, LO, GO, NO >::getGlobalInterfaceMapVecFieldPartial ( ) const

inline

Get global interface map vector field partial.

Returns: partialGlobalInterfaceVecFieldMap

◆ getGlobalInterfaceMapVecFieldUnique()

template<class SC, class LO, class GO, class NO>

Domain< SC, LO, GO, NO >::MapConstPtr_Type Domain::getGlobalInterfaceMapVecFieldUnique ( ) const

Get interface vec field map unique (for fsi coupling block c4)

Returns: globalInterfaceMapUnique

◆ getInterfaceMapUnique()

template<class SC, class LO, class GO, class NO>

Domain< SC, LO, GO, NO >::MapConstPtr_Type Domain::getInterfaceMapUnique ( ) const

Get interface map unique.

Returns: interfaceMapUnique

◆ getInterfaceMapVecFieldUnique()

template<class SC, class LO, class GO, class NO>

Domain< SC, LO, GO, NO >::MapConstPtr_Type Domain::getInterfaceMapVecFieldUnique ( ) const

Get interface vector field map unique.

Returns: interfaceMapVecFieldUnique

◆ getLocalInterfaceIDInGlobal()

template<class SC, class LO, class GO, class NO>

vec_long_Type Domain::getLocalInterfaceIDInGlobal ( ) const

Get local interface id in global.

Returns: globalInterfaceID

◆ getMapRepeated()

template<class SC, class LO, class GO, class NO>

Domain< SC, LO, GO, NO >::MapConstPtr_Type Domain::getMapRepeated ( ) const

Get map of all repeated (not uniquely distributed) nodes of processors.

Returns: mepRepeated

Here is the caller graph for this function:

◆ getMapUnique()

template<class SC, class LO, class GO, class NO>

Domain< SC, LO, GO, NO >::MapConstPtr_Type Domain::getMapUnique ( ) const

Get map of all uniquely distributed nodes of the processors.

Returns: mapUnique

Here is the caller graph for this function:

◆ getMapVecFieldRepeated()

template<class SC, class LO, class GO, class NO>

Domain< SC, LO, GO, NO >::MapConstPtr_Type Domain::getMapVecFieldRepeated ( ) const

brief Get map of all repeated (not uniquely distributed) nodes of processors in a vector field point of view. Here, a node has more than one degree of freedom. For Example in with dofs=2: 1_x , 1_y , 2_x , 2_y ,... . This degree of freedom map captures this.

Returns: mepVecFieldRepeated

Here is the call graph for this function:

◆ getMapVecFieldUnique()

template<class SC, class LO, class GO, class NO>

Domain< SC, LO, GO, NO >::MapConstPtr_Type Domain::getMapVecFieldUnique ( ) const

Get map of all unique (not uniquely distributed) nodes of processors in a vector field point of view. Here, a node has more than one degree of freedom. For Example in with dofs=2: 1_x , 1_y , 2_x , 2_y ,... . This degree of freedom map captures this.

Returns: mepVecFieldUnique

Here is the caller graph for this function:

◆ getMesh() [1/2]

template<class SC, class LO, class GO, class NO>

Domain< SC, LO, GO, NO >::MeshPtr_Type Domain::getMesh ( )

Get mesh.

Returns: mesh

Here is the caller graph for this function:

◆ getMesh() [2/2]

template<class SC, class LO, class GO, class NO>

Domain< SC, LO, GO, NO >::MeshConstPtr_Type Domain::getMesh ( ) const

Get mesh constant.

Returns: mesh

◆ getNodeListMV()

template<class SC, class LO, class GO, class NO>

Domain< SC, LO, GO, NO >::MultiVectorPtr_Type Domain::getNodeListMV ( ) const

Get node list in multi vector point.

Parameters

[in] nodeListMV

Here is the call graph for this function:

◆ getNumElements()

template<class SC, class LO, class GO, class NO>

LO Domain::getNumElements ( ) const

Get local number of elements (on your processor)

Returns: numElementsGlobal

◆ getNumElementsGlobal()

template<class SC, class LO, class GO, class NO>

GO Domain::getNumElementsGlobal ( ) const

Get global number of elements.

Returns: numElementsGlobal

◆ getNumPoints()

template<class SC, class LO, class GO, class NO>

LO Domain::getNumPoints ( std::string type = "Unique" ) const

Get local number of points of type 'type' (unique/repeated)

Returns: numPoints

◆ getOtherGlobalInterfaceMapVecFieldPartial()

template<class SC = default_sc, class LO = default_lo, class GO = default_go, class NO = default_no>

MapConstPtr_Type FEDD::Domain< SC, LO, GO, NO >::getOtherGlobalInterfaceMapVecFieldPartial ( ) const

inline

Get other global interface map vec field partial.

Returns: otherPartialGlobalInterfaceVecFieldMap

◆ getOtherGlobalInterfaceMapVecFieldUnique()

template<class SC, class LO, class GO, class NO>

Domain< SC, LO, GO, NO >::MapConstPtr_Type Domain::getOtherGlobalInterfaceMapVecFieldUnique ( ) const

Get other interface vec field map unique (for fsi coupling block c4)

Returns: globalInterfaceMapUnique

◆ getPointsRepeated()

template<class SC, class LO, class GO, class NO>

vec2D_dbl_ptr_Type Domain::getPointsRepeated ( ) const

Get vector of repeated points (on your processor). 2D Vector with size: numPoints x dim.

Returns: pointsRepeated

Here is the caller graph for this function:

◆ getPointsUnique()

template<class SC, class LO, class GO, class NO>

vec2D_dbl_ptr_Type Domain::getPointsUnique ( ) const

Get vector of unique points (on your processor). 2D Vector with size: numPoints x dim.

Returns: pointsUnique

Here is the caller graph for this function:

◆ identifyInterfaceParallelAndDistance()

template<class SC, class LO, class GO, class NO>

void Domain::identifyInterfaceParallelAndDistance	(	DomainPtr_Type	domainOther,
		vec_int_Type	interfaceID_vec )

Itentify interface parallal and distance.

Parameters

[in]	domainOther
[in]	interfaceID_vec

◆ initDummyMesh()

template<class SC, class LO, class GO, class NO>

void Domain::initDummyMesh ( MapPtr_Type map )

Initialize dummy mesh for i.e. lagrange multiplier that only represents on 'point' in that sense. i.e. for setting pressure mean value in P2-P1 stokes problem. This is necassary if a variable does not live on a mesh.

This function might not be necassary in the long run.

Parameters

[in] map for this dummy mesh. Maybe the mesh only represents one point (i.e. for lagrange mp).

◆ initializeUnstructuredMesh()

template<class SC, class LO, class GO, class NO>

void Domain::initializeUnstructuredMesh	(	int	dimension,
		std::string	feType,
		int	volumeID = 10,
		std::string	meshUnit = "cm",
		bool	convertToCM = false )

Generally the domain object holds only meshes from type 'Mesh'. If we read a mesh from file it becomes the type 'MeshUnstructured' and needs to be initialized.

Parameters

[in]	dimension
[in]	FEType
[in]	volumeID

◆ initWithDomain()

template<class SC, class LO, class GO, class NO>

void Domain::initWithDomain ( DomainPtr_Type domainsP1 )

Initialize domain with already existing domain.

Parameters

[in] domainP1 the domain with the mesh we read from .mesh file

◆ moveMesh()

template<class SC, class LO, class GO, class NO>

void Domain::moveMesh	(	MultiVectorPtr_Type	displacementUnique,
		MultiVectorPtr_Type	displacementRepeated )

Move mesh according to displacement (i.e. used in FSI)

Parameters

[in]	displacementUnique
[in]	displacementRepeated

◆ partitionMesh()

template<class SC, class LO, class GO, class NO>

void Domain::partitionMesh ( bool partitionDistance = false )

Partition mesh according to number of processors. Partition with parmetis.

Parameters

[in] partitionDistance

◆ preProcessMesh()

template<class SC, class LO, class GO, class NO>

void Domain::preProcessMesh	(	bool	correctSurfaceNormals,
		bool	correctElementDirection )

Option of preprocessing mesh by making consistent outward normal and/or consistent element orientation, where we always have positive det of transformation to reference element.

Parameters

correctSurfaceNormals	bool for normal direction
correctElementDirection	bool for surface direction

◆ readAndPartitionMesh()

template<class SC, class LO, class GO, class NO>

void Domain::readAndPartitionMesh	(	std::string	filename,
		std::string	delimiter,
		int	dim,
		std::string	FEType,
		int	volumeID = 10 )

Function called when mesh is read and paritioned. In turn it calls readMesh(...) and partitionMesh(...)

Parameters

[in]	filename
[in]	delimiter
[in]	dim
[in]	FEType
[in]	volumeID	element flag

◆ readMesh()

template<class SC = default_sc, class LO = default_lo, class GO = default_go, class NO = default_no>

void FEDD::Domain< SC, LO, GO, NO >::readMesh	(	std::string	filename,
		std::string	delimiter,
		int	dim,
		std::string	FEType,
		int	volumeID = 10 )

Reading mesh from .mesh file with name 'filename'.

Parameters

[in]	filename
[in]	delimiter
[in]	dim
[in]	FEType
[in]	volumeID	element flag

◆ readMeshSize()

template<class SC, class LO, class GO, class NO>

void Domain::readMeshSize	(	std::string	filename,
		std::string	delimiter )

Reading mesh size.

Parameters

[in]	filename
[in]	delimiter

◆ setDummyInterfaceDomain()

template<class SC, class LO, class GO, class NO>

void Domain::setDummyInterfaceDomain ( DomainPtr_Type domain )

Set dummy interface domain.

Parameters

[in] domain

◆ setMesh()

template<class SC, class LO, class GO, class NO>

void Domain::setMesh ( MeshUnstrPtr_Type meshUnstr )

Settng mesh from domain.

Parameters

[in] meshUnstr mesh of MeshUnstr_Type which is generally the type of meshes from .mesh files

◆ setPartialCoupling()

template<class SC, class LO, class GO, class NO>

void Domain::setPartialCoupling	(	int	flag,
		std::string	type )

Set partial coupling.

Parameters

[in]	flag
[in]	type

Here is the call graph for this function:

The documentation for this class was generated from the following files:

feddlib/core/FE/Domain_decl.hpp
feddlib/core/FE/Domain_def.hpp

Public Types

Public Member Functions

Constructor & Destructor Documentation

◆ Domain() [1/4]

◆ Domain() [2/4]

◆ Domain() [3/4]

◆ Domain() [4/4]

Member Function Documentation

◆ buildMesh()

◆ buildP2ofP1Domain()

◆ checkGeomentry()

◆ exportDistribution()

◆ exportElementFlags()

◆ exportElementOrientation()

◆ exportNodeFlags()

◆ exportSurfaceNormals()

◆ findInPointsUnique()

◆ getApproxEntriesPerRow()

◆ getBCFlagRepeated()

◆ getBCFlagUnique()

◆ getComm()

◆ getDimension()

◆ getDistancesToInterface()

◆ getEdgeMap()

◆ getElementMap()

◆ getElements()

◆ getElementsC()

◆ getElementsFlag()

◆ getFEType()

◆ getGlobalInterfaceMapUnique()

◆ getGlobalInterfaceMapVecFieldPartial()

◆ getGlobalInterfaceMapVecFieldUnique()

◆ getInterfaceMapUnique()

◆ getInterfaceMapVecFieldUnique()

◆ getLocalInterfaceIDInGlobal()

◆ getMapRepeated()

◆ getMapUnique()

◆ getMapVecFieldRepeated()

◆ getMapVecFieldUnique()

◆ getMesh() [1/2]

◆ getMesh() [2/2]

◆ getNodeListMV()

◆ getNumElements()

◆ getNumElementsGlobal()

◆ getNumPoints()

◆ getOtherGlobalInterfaceMapVecFieldPartial()

◆ getOtherGlobalInterfaceMapVecFieldUnique()

◆ getPointsRepeated()

◆ getPointsUnique()

◆ identifyInterfaceParallelAndDistance()

◆ initDummyMesh()

◆ initializeUnstructuredMesh()

◆ initWithDomain()

◆ moveMesh()

◆ partitionMesh()

◆ preProcessMesh()

◆ readAndPartitionMesh()

◆ readMesh()

◆ readMeshSize()

◆ setDummyInterfaceDomain()

◆ setMesh()

◆ setPartialCoupling()
