Inheritance diagram for FEDD::FE_ElementAssembly< SC, LO, GO, NO >:

Public Types
typedef Domain< SC, LO, GO, NO >	Domain_Type

typedef Teuchos::RCP< Domain_Type >	DomainPtr_Type

typedef Teuchos::RCP< const Domain_Type >	DomainConstPtr_Type

typedef std::vector< DomainConstPtr_Type >	DomainConstPtr_vec_Type

typedef Teuchos::RCP< Mesh< SC, LO, GO, NO > >	MeshPtr_Type

typedef MeshUnstructured< SC, LO, GO, NO >	MeshUnstr_Type

typedef Teuchos::RCP< MeshUnstr_Type >	MeshUnstrPtr_Type

typedef Elements	Elements_Type

typedef Teuchos::RCP< Elements_Type >	ElementsPtr_Type

typedef Teuchos::RCP< const Elements_Type >	ElementsConstPtr_Type

typedef Matrix< SC, LO, GO, NO >	Matrix_Type

typedef Teuchos::RCP< Matrix_Type >	MatrixPtr_Type

typedef Matrix_Type::MapPtr_Type	MapPtr_Type

typedef Matrix_Type::MapConstPtr_Type	MapConstPtr_Type

typedef MultiVector< SC, LO, GO, NO >	MultiVector_Type

typedef Teuchos::RCP< MultiVector_Type >	MultiVectorPtr_Type

typedef Teuchos::RCP< const MultiVector_Type >	MultiVectorConstPtr_Type

typedef std::vector< GO >	vec_GO_Type

typedef std::vector< vec_GO_Type >	vec2D_GO_Type

typedef std::vector< vec2D_GO_Type >	vec3D_GO_Type

typedef Teuchos::RCP< vec3D_GO_Type >	vec3D_GO_ptr_Type

typedef AssembleFE< SC, LO, GO, NO >	AssembleFE_Type

typedef Teuchos::RCP< AssembleFE_Type >	AssembleFEPtr_Type

typedef AssembleFENavierStokes< SC, LO, GO, NO >	AssembleFENavierStokes_Type

typedef Teuchos::RCP< AssembleFENavierStokes_Type >	AssembleFENavierStokesPtr_Type

typedef AssembleFEGeneralizedNewtonian< SC, LO, GO, NO >	AssembleFEGeneralizedNewtonian_Type

typedef Teuchos::RCP< AssembleFEGeneralizedNewtonian_Type >	AssembleFEGeneralizedNewtonianPtr_Type

typedef AssembleFE_SCI_SMC_Active_Growth_Reorientation< SC, LO, GO, NO >	AssembleFE_SCI_SMC_Active_Growth_Reorientation_Type

typedef Teuchos::RCP< AssembleFE_SCI_SMC_Active_Growth_Reorientation_Type >	AssembleFE_SCI_SMC_Active_Growth_Reorientation_Ptr_Type

typedef std::vector< AssembleFEPtr_Type >	AssembleFEPtr_vec_Type

typedef BlockMatrix< SC, LO, GO, NO >	BlockMatrix_Type

typedef Teuchos::RCP< BlockMatrix_Type >	BlockMatrixPtr_Type

typedef BlockMultiVector< SC, LO, GO, NO >	BlockMultiVector_Type

typedef Teuchos::RCP< BlockMultiVector_Type >	BlockMultiVectorPtr_Type

typedef SmallMatrix< SC >	SmallMatrix_Type

typedef Teuchos::RCP< SmallMatrix_Type >	SmallMatrixPtr_Type

Public Member Functions
	FE_ElementAssembly (bool saveAssembly=false)

void	addFE (DomainConstPtr_Type domain)

void	doSetZeros (double eps=10 *Teuchos::ScalarTraits< SC >::eps())

void	assemblyEmptyMatrix (MatrixPtr_Type &A)

void	assemblyNonlinearLaplace (int dim, std::string FEType, int degree, MultiVectorPtr_Type u_rep, BlockMatrixPtr_Type &A, BlockMultiVectorPtr_Type &resVec, ParameterListPtr_Type params, std::string assembleMode, bool callFillComplete=true, int FELocExternal=-1)
	Assembly of Jacobian for nonlinear Laplace example.

void	assemblyNavierStokes (int dim, std::string FETypeVelocity, std::string FETypePressure, int degree, int dofsVelocity, int dofsPressure, MultiVectorPtr_Type u_rep, MultiVectorPtr_Type p_rep, BlockMatrixPtr_Type &A, BlockMultiVectorPtr_Type &resVec, SmallMatrix_Type coeff, ParameterListPtr_Type params, bool reAssemble, std::string assembleMode, bool callFillComplete=true, int FELocExternal=-1)
	Assembly of Jacobian for NavierStokes.

void	assemblyLaplaceAssFE (int dim, std::string FEType, int degree, int dofs, BlockMatrixPtr_Type &A, bool callFillComplete, int FELocExternal=-1)
	Assembly of constant stiffness matix for laplacian operator $\Delta$ .

void	assemblyAceDeformDiffu (int dim, std::string FETypeChem, std::string FETypeSolid, int degree, int dofsChem, int dofsSolid, MultiVectorPtr_Type c_rep, MultiVectorPtr_Type d_rep, BlockMatrixPtr_Type &A, BlockMultiVectorPtr_Type &resVec, ParameterListPtr_Type params, std::string assembleMode, bool callFillComplete=true, int FELocExternal=-1)

void	assemblyAceDeformDiffuBlock (int dim, std::string FETypeChem, std::string FETypeSolid, int degree, int dofsChem, int dofsSolid, MultiVectorPtr_Type c_rep, MultiVectorPtr_Type d_rep, BlockMatrixPtr_Type &A, int blockRow, int blockCol, BlockMultiVectorPtr_Type &resVec, int block, ParameterListPtr_Type params, std::string assembleMode, bool callFillComplete=true, int FELocExternal=-1)

void	advanceInTimeAssemblyFEElements (double dt, MultiVectorPtr_Type d_rep, MultiVectorPtr_Type c_rep)

void	assemblyLinearElasticity (int dim, std::string FEType, int degree, int dofs, MultiVectorPtr_Type d_rep, BlockMatrixPtr_Type &A, BlockMultiVectorPtr_Type &resVec, ParameterListPtr_Type params, bool reAssemble, std::string assembleMode, bool callFillComplete=true, int FELocExternal=-1)
	Assembly of Jacobian.

void	assemblyNonLinearElasticity (int dim, std::string FEType, int degree, int dofs, MultiVectorPtr_Type d_rep, BlockMatrixPtr_Type &A, BlockMultiVectorPtr_Type &resVec, ParameterListPtr_Type params, bool callFillComplete=true, int FELocExternal=-1)
	Assembly of Jacobian for nonlinear Elasticity.

void	assemblyNonLinearElasticity (int dim, std::string FEType, int degree, int dofs, MultiVectorPtr_Type d_rep, BlockMatrixPtr_Type &A, BlockMultiVectorPtr_Type &resVec, ParameterListPtr_Type params, DomainConstPtr_Type domain, MultiVectorPtr_Type eModVec, bool callFillComplete=true, int FELocExternal=-1)
	Assembly of Jacobian for nonlinear Elasticity.

void	computeSteadyViscosityFE_CM (int dim, std::string FETypeVelocity, std::string FETypePressure, int dofsVelocity, int dofsPressure, MultiVectorPtr_Type u_rep, MultiVectorPtr_Type p_rep, ParameterListPtr_Type params)
	Postprocessing: Using a converged velocity solution -> compute averaged viscosity inside an element at center of mass.

void	changeLinearizationFE (std::string linearization)
	Method to loop over all assembleFESpecific elements and set the defined linearization.

Public Attributes
BlockMultiVectorPtr_Type	const_output_fields

DomainConstPtr_vec_Type	domainVec_

Protected Member Functions
int	checkFE (int Dimension, std::string FEType)
	Checks which domain corresponds to certain FE Type and dimension.

vec2D_dbl_Type	getCoordinates (vec_LO_Type localIDs, vec2D_dbl_ptr_Type points)
	Returns coordinates of local node ids.

vec_dbl_Type	getSolution (vec_LO_Type localIDs, MultiVectorPtr_Type u_rep, int dofsVelocity)
	Returns entries of u of element.

Protected Attributes
bool	setZeros_

SC	myeps_

bool	saveAssembly_

Member Function Documentation

◆ assemblyAceDeformDiffu()

template<class SC, class LO, class GO, class NO>

void FEDD::FE_ElementAssembly< SC, LO, GO, NO >::assemblyAceDeformDiffu	(	int	dim,
		std::string	FETypeChem,
		std::string	FETypeSolid,
		int	degree,
		int	dofsChem,
		int	dofsSolid,
		MultiVectorPtr_Type	c_rep,
		MultiVectorPtr_Type	d_rep,
		BlockMatrixPtr_Type &	A,
		BlockMultiVectorPtr_Type &	resVec,
		ParameterListPtr_Type	params,
		std::string	assembleMode,
		bool	callFillComplete = true,
		int	FELocExternal = -1 )

Tupel construction follows follwing pattern: std::string: Physical Entity (i.e. Velocity) , std::string: Discretisation (i.e. "P2"), int: Degrees of Freedom per Node, int: Number of Nodes per element)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ assemblyAceDeformDiffuBlock()

template<class SC, class LO, class GO, class NO>

void FEDD::FE_ElementAssembly< SC, LO, GO, NO >::assemblyAceDeformDiffuBlock	(	int	dim,
		std::string	FETypeChem,
		std::string	FETypeSolid,
		int	degree,
		int	dofsChem,
		int	dofsSolid,
		MultiVectorPtr_Type	c_rep,
		MultiVectorPtr_Type	d_rep,
		BlockMatrixPtr_Type &	A,
		int	blockRow,
		int	blockCol,
		BlockMultiVectorPtr_Type &	resVec,
		int	block,
		ParameterListPtr_Type	params,
		std::string	assembleMode,
		bool	callFillComplete = true,
		int	FELocExternal = -1 )

Tupel construction follows follwing pattern: std::string: Physical Entity (i.e. Velocity) , std::string: Discretisation (i.e. "P2"), int: Degrees of Freedom per Node, int: Number of Nodes per element)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ assemblyLaplaceAssFE()

template<class SC, class LO, class GO, class NO>

void FEDD::FE_ElementAssembly< SC, LO, GO, NO >::assemblyLaplaceAssFE	(	int	dim,
		std::string	FEType,
		int	degree,
		int	dofs,
		BlockMatrixPtr_Type &	A,
		bool	callFillComplete,
		int	FELocExternal = -1 )

Assembly of constant stiffness matix for laplacian operator $\Delta$ .

Parameters

[in]	dim	Dimension
[in]	FEType	FE Discretization
[in]	degree	Degree of basis function
[in]	A	Resulting matrix
[in]	callFillComplete	If Matrix A should be completely filled at end of function
[in]	FELocExternal

Here is the call graph for this function:

Here is the caller graph for this function:

◆ assemblyLinearElasticity()

template<class SC, class LO, class GO, class NO>

void FEDD::FE_ElementAssembly< SC, LO, GO, NO >::assemblyLinearElasticity	(	int	dim,
		std::string	FEType,
		int	degree,
		int	dofs,
		MultiVectorPtr_Type	d_rep,
		BlockMatrixPtr_Type &	A,
		BlockMultiVectorPtr_Type &	resVec,
		ParameterListPtr_Type	params,
		bool	reAssemble,
		std::string	assembleMode,
		bool	callFillComplete = true,
		int	FELocExternal = -1 )

Assembly of Jacobian.

Parameters

[in]	dim	Dimension
[in]	FEType	FE Discretization
[in]	degree	Degree of basis function
[in]	A	Resulting matrix
[in]	callFillComplete	If Matrix A should be completely filled at end of function
[in]	FELocExternal

Inserting element stiffness matrices into global stiffness matrix

Parameters

[in]	&A	Global Block Matrix
[in]	elementMatrix	Stiffness matrix of one element
[in]	element	Corresponding finite element
[in]	map	Map that corresponds to repeated nodes of first block
[in]	map	Map that corresponds to repeated nodes of second block

Inserting local rhsVec into global residual Mv;

Parameters

[in]	res	BlockMultiVector of residual vec; Repeated distribution; 2 blocks
[in]	rhsVec	sorted the same way as residual vec
[in]	element	of block1

Assembly of Jacobian for Linear Elasticity

Parameters

[in]	dim	Dimension
[in]	FEType	FE Discretization
[in]	degree	Degree of basis function
[in]	A	Resulting matrix
[in]	callFillComplete	If Matrix A should be completely filled at end of function
[in]	FELocExternal

Tupel construction follows follwing pattern: std::string: Physical Entity (i.e. Velocity) , std::string: Discretisation (i.e. "P2"), int: Degrees of Freedom per Node, int: Number of Nodes per element)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ assemblyNavierStokes()

template<class SC, class LO, class GO, class NO>

void FEDD::FE_ElementAssembly< SC, LO, GO, NO >::assemblyNavierStokes	(	int	dim,
		std::string	FETypeVelocity,
		std::string	FETypePressure,
		int	degree,
		int	dofsVelocity,
		int	dofsPressure,
		MultiVectorPtr_Type	u_rep,
		MultiVectorPtr_Type	p_rep,
		BlockMatrixPtr_Type &	A,
		BlockMultiVectorPtr_Type &	resVec,
		SmallMatrix_Type	coeff,
		ParameterListPtr_Type	params,
		bool	reAssemble,
		std::string	assembleMode,
		bool	callFillComplete = true,
		int	FELocExternal = -1 )

Assembly of Jacobian for NavierStokes.

Parameters

[in]	dim	Dimension
[in]	FEType	FE Discretization
[in]	degree	Degree of basis function
[in]	A	Resulting matrix
[in]	callFillComplete	If Matrix A should be completely filled at end of function
[in]	FELocExternal

Tupel construction follows follwing pattern: std::string: Physical Entity (i.e. Velocity) , std::string: Discretisation (i.e. "P2"), int: Degrees of Freedom per Node, int: Number of Nodes per element)

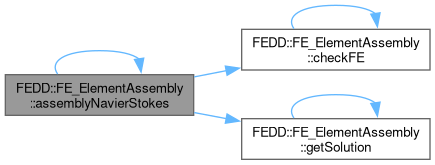

Here is the call graph for this function:

Here is the caller graph for this function:

◆ assemblyNonLinearElasticity() [1/2]

template<class SC, class LO, class GO, class NO>

void FEDD::FE_ElementAssembly< SC, LO, GO, NO >::assemblyNonLinearElasticity	(	int	dim,
		std::string	FEType,
		int	degree,
		int	dofs,
		MultiVectorPtr_Type	d_rep,
		BlockMatrixPtr_Type &	A,
		BlockMultiVectorPtr_Type &	resVec,
		ParameterListPtr_Type	params,
		bool	callFillComplete = true,
		int	FELocExternal = -1 )

Assembly of Jacobian for nonlinear Elasticity.

Parameters

[in]	dim	Dimension
[in]	FEType	FE Discretization
[in]	degree	Degree of basis function
[in]	A	Resulting matrix
[in]	callFillComplete	If Matrix A should be completely filled at end of function
[in]	FELocExternal

Tupel construction follows follwing pattern: std::string: Physical Entity (i.e. Velocity) , std::string: Discretisation (i.e. "P2"), int: Degrees of Freedom per Node, int: Number of Nodes per element)

Here is the call graph for this function:

Here is the caller graph for this function:

◆ assemblyNonLinearElasticity() [2/2]

template<class SC, class LO, class GO, class NO>

void FEDD::FE_ElementAssembly< SC, LO, GO, NO >::assemblyNonLinearElasticity	(	int	dim,
		std::string	FEType,
		int	degree,
		int	dofs,
		MultiVectorPtr_Type	d_rep,
		BlockMatrixPtr_Type &	A,
		BlockMultiVectorPtr_Type &	resVec,
		ParameterListPtr_Type	params,
		DomainConstPtr_Type	domain,
		MultiVectorPtr_Type	eModVec,
		bool	callFillComplete = true,
		int	FELocExternal = -1 )

Assembly of Jacobian for nonlinear Elasticity.

Parameters

[in]	dim	Dimension
[in]	FEType	FE Discretization
[in]	degree	Degree of basis function
[in]	A	Resulting matrix
[in]	callFillComplete	If Matrix A should be completely filled at end of function
[in]	FELocExternal

Tupel construction follows follwing pattern: std::string: Physical Entity (i.e. Velocity) , std::string: Discretisation (i.e. "P2"), int: Degrees of Freedom per Node, int: Number of Nodes per element)

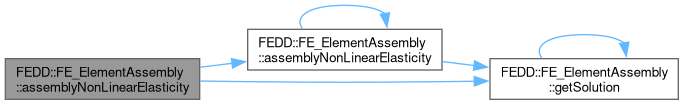

Here is the call graph for this function:

◆ assemblyNonlinearLaplace()

template<class SC, class LO, class GO, class NO>

void FEDD::FE_ElementAssembly< SC, LO, GO, NO >::assemblyNonlinearLaplace	(	int	dim,
		std::string	FEType,
		int	degree,
		MultiVectorPtr_Type	u_rep,
		BlockMatrixPtr_Type &	A,
		BlockMultiVectorPtr_Type &	resVec,
		ParameterListPtr_Type	params,
		std::string	assembleMode,
		bool	callFillComplete = true,
		int	FELocExternal = -1 )

Assembly of Jacobian for nonlinear Laplace example.

Parameters

[in]	dim	Dimension
[in]	FEType	FE Discretization
[in]	degree	Degree of basis function
[in]	u_rep	The current solution
[in]	A	Resulting matrix
[in]	resVec	Resulting residual
[in]	params	Params needed by the problem. Placeholder for now.
[in]	assembleMode	What should be assembled i.e. Rhs (residual) or the Jacobian
[in]	callFillComplete	If Matrix A should be redistributed across MPI procs at end of function
[in]	FELocExternal	?

Here is the call graph for this function:

Here is the caller graph for this function:

◆ changeLinearizationFE()

template<class SC, class LO, class GO, class NO>

void FEDD::FE_ElementAssembly< SC, LO, GO, NO >::changeLinearizationFE ( std::string linearization )

Method to loop over all assembleFESpecific elements and set the defined linearization.

Parameters

[in] string linearization e.g. "Picard" or "Newton"

Here is the call graph for this function:

Here is the caller graph for this function:

◆ computeSteadyViscosityFE_CM()

template<class SC, class LO, class GO, class NO>

void FEDD::FE_ElementAssembly< SC, LO, GO, NO >::computeSteadyViscosityFE_CM	(	int	dim,
		std::string	FETypeVelocity,
		std::string	FETypePressure,
		int	dofsVelocity,
		int	dofsPressure,
		MultiVectorPtr_Type	u_rep,
		MultiVectorPtr_Type	p_rep,
		ParameterListPtr_Type	params )

Postprocessing: Using a converged velocity solution -> compute averaged viscosity inside an element at center of mass.

Parameters

[in]	dim	Dimension
[in]	FEType	FE Discretization
[in]	degree	Degree of basis function
[in]	repeated	solution fields for u and p
[in]	parameter	lists

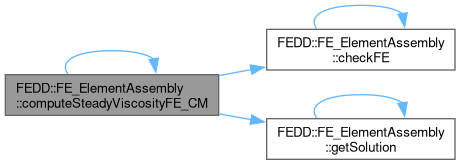

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getCoordinates()

template<class SC, class LO, class GO, class NO>

vec2D_dbl_Type FEDD::FE_ElementAssembly< SC, LO, GO, NO >::getCoordinates	(	vec_LO_Type	localIDs,
		vec2D_dbl_ptr_Type	points )

protected

Returns coordinates of local node ids.

Parameters

[in]	localIDs
[in]	points
[out]	coordinates

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getSolution()

template<class SC, class LO, class GO, class NO>

vec_dbl_Type FEDD::FE_ElementAssembly< SC, LO, GO, NO >::getSolution	(	vec_LO_Type	localIDs,
		MultiVectorPtr_Type	u_rep,
		int	dofsVelocity )

protected

Returns entries of u of element.

Parameters

[in]	localIDs
[in]	points
[out]	coordinates

Here is the call graph for this function:

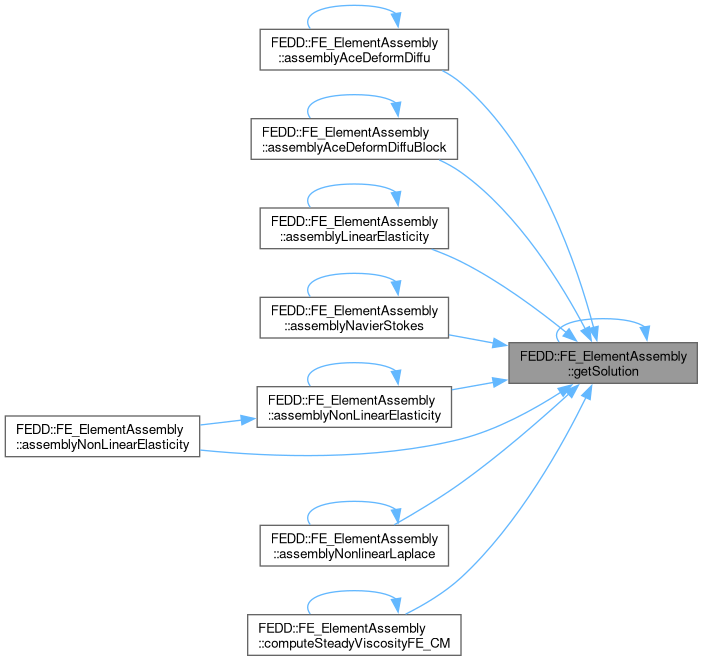

Here is the caller graph for this function:

The documentation for this class was generated from the following files:

feddlib/core/FE/FE_ElementAssembly_decl.hpp
feddlib/core/FE/FE_ElementAssembly_def.hpp

Public Types

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Member Function Documentation

◆ assemblyAceDeformDiffu()

◆ assemblyAceDeformDiffuBlock()

◆ assemblyLaplaceAssFE()

◆ assemblyLinearElasticity()

◆ assemblyNavierStokes()

◆ assemblyNonLinearElasticity() [1/2]

◆ assemblyNonLinearElasticity() [2/2]

◆ assemblyNonlinearLaplace()

◆ changeLinearizationFE()

◆ computeSteadyViscosityFE_CM()

◆ getCoordinates()

◆ getSolution()
