FEDD::LinearSolver< SC, LO, GO, NO > Class Template Reference

Public Types
typedef Problem< SC, LO, GO, NO >	Problem_Type
typedef Teuchos::RCP< Problem_Type >	ProblemPtr_Type
typedef TimeProblem< SC, LO, GO, NO >	TimeProblem_Type
typedef Teuchos::RCP< const Thyra::LinearOpBase< SC > >	ThyraLinOpConstPtr_Type
typedef Thyra::BlockedLinearOpBase< SC >	ThyraLinOpBlock_Type
typedef Teuchos::RCP< ThyraLinOpBlock_Type >	ThyraLinOpBlockPtr_Type
typedef Teuchos::RCP< const ThyraLinOpBlock_Type >	ThyraLinOpBlockConstPtr_Type
typedef Teuchos::RCP< Thyra::PreconditionerBase< SC > >	ThyraPrecPtr_Type
typedef Problem_Type::Matrix_Type	Matrix_Type
typedef Problem_Type::MatrixPtr_Type	MatrixPtr_Type
typedef Problem_Type::BlockMatrixPtr_Type	BlockMatrixPtr_Type
typedef BlockMultiVector< SC, LO, GO, NO >	BlockMultiVector_Type
typedef Teuchos::RCP< BlockMultiVector_Type >	BlockMultiVectorPtr_Type

Public Member Functions
int	solve (Problem_Type *problem, BlockMultiVectorPtr_Type rhs, std::string type="Monolithic")
	Call to solve a linear/linearized problem with right-hand side rhs. Depending on 'type' solveMonolithic, solveTeko, solveBlock is called.
int	solve (TimeProblem_Type *timeProblem, BlockMultiVectorPtr_Type rhs, std::string type="Monolithic")
	Call to solve a linear/linearized problem with right-hand side rhs. Depending on 'type' solveMonolithic, solveTeko, solveBlock is called.
int	solveMonolithic (Problem_Type *problem, BlockMultiVectorPtr_Type rhs, std::string type)
	Solve linear/linearized problem monolithicly.
int	solveMonolithic (TimeProblem_Type *problem, BlockMultiVectorPtr_Type rhs)
	Solve linear/linearized time dependent problem monolithicly.
int	solveBlock (Problem_Type *problem, BlockMultiVectorPtr_Type rhs, std::string precType)
	In case of a block system, solve block is called. It works also for teko.
int	solveBlock (TimeProblem_Type *problem, BlockMultiVectorPtr_Type rhs, std::string precType)
	In case of a block system, solve block is called. It works also for teko.

Member Function Documentation

solve() [1/2]

template<class SC, class LO, class GO, class NO>

int FEDD::LinearSolver< SC, LO, GO, NO >::solve	(	Problem_Type *	problem,
		BlockMultiVectorPtr_Type	rhs,
		std::string	type = "Monolithic" )

Call to solve a linear/linearized problem with right-hand side rhs. Depending on 'type' solveMonolithic, solveTeko, solveBlock is called.

Parameters

[in]	problem
[in]	rhs
[in]	type

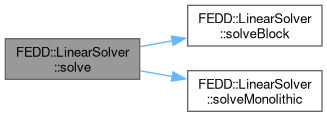

Here is the call graph for this function:

solve() [2/2]

template<class SC, class LO, class GO, class NO>

int FEDD::LinearSolver< SC, LO, GO, NO >::solve	(	TimeProblem_Type *	timeProblem,
		BlockMultiVectorPtr_Type	rhs,
		std::string	type = "Monolithic" )

Call to solve a linear/linearized problem with right-hand side rhs. Depending on 'type' solveMonolithic, solveTeko, solveBlock is called.

Parameters

[in]	timeProblem
[in]	rhs
[in]	type

Here is the call graph for this function:

solveBlock() [1/2]

template<class SC, class LO, class GO, class NO>

int FEDD::LinearSolver< SC, LO, GO, NO >::solveBlock	(	Problem_Type *	problem,
		BlockMultiVectorPtr_Type	rhs,
		std::string	precType )

In case of a block system, solve block is called. It works also for teko.

Parameters

[in]	problem
[in]	rhs
[in]	precType

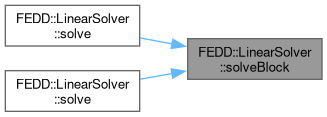

Here is the caller graph for this function:

solveBlock() [2/2]

template<class SC, class LO, class GO, class NO>

int FEDD::LinearSolver< SC, LO, GO, NO >::solveBlock	(	TimeProblem_Type *	problem,
		BlockMultiVectorPtr_Type	rhs,
		std::string	precType )

In case of a block system, solve block is called. It works also for teko.

Parameters

[in]	problem
[in]	rhs
[in]	precTypes

solveMonolithic() [1/2]

template<class SC, class LO, class GO, class NO>

int FEDD::LinearSolver< SC, LO, GO, NO >::solveMonolithic	(	Problem_Type *	problem,
		BlockMultiVectorPtr_Type	rhs,
		std::string	type )

Solve linear/linearized problem monolithicly.

Parameters

[in]	problem
[in]	rhs
[in]	type

Here is the call graph for this function:

Here is the caller graph for this function:

solveMonolithic() [2/2]

template<class SC, class LO, class GO, class NO>

int FEDD::LinearSolver< SC, LO, GO, NO >::solveMonolithic	(	TimeProblem_Type *	problem,
		BlockMultiVectorPtr_Type	rhs )

Solve linear/linearized time dependent problem monolithicly.

Parameters

[in]	problem
[in]	rhs

---

The documentation for this class was generated from the following files:

• feddlib/problems/Solver/LinearSolver_decl.hpp
• feddlib/problems/Solver/LinearSolver_def.hpp
