FEDD::Problem< SC, LO, GO, NO > Class Template Reference

Public Types
typedef Domain< SC, LO, GO, NO >	Domain_Type
typedef Teuchos::RCP< Domain_Type >	DomainPtr_Type
typedef Teuchos::RCP< const Domain_Type >	DomainConstPtr_Type
typedef std::vector< DomainConstPtr_Type >	DomainConstPtr_vec_Type
typedef Matrix< SC, LO, GO, NO >	Matrix_Type
typedef Teuchos::RCP< Matrix_Type >	MatrixPtr_Type
typedef Matrix_Type::Map_Type	Map_Type
typedef Matrix_Type::MapPtr_Type	MapPtr_Type
typedef Matrix_Type::MapConstPtr_Type	MapConstPtr_Type
typedef BlockMatrix< SC, LO, GO, NO >	BlockMatrix_Type
typedef Teuchos::RCP< BlockMatrix_Type >	BlockMatrixPtr_Type
typedef Teuchos::RCP< const BlockMatrix_Type >	BlockMatrixConstPtr_Type
typedef MultiVector< SC, LO, GO, NO >	MultiVector_Type
typedef Teuchos::RCP< MultiVector_Type >	MultiVectorPtr_Type
typedef Teuchos::RCP< const MultiVector_Type >	MultiVectorConstPtr_Type
typedef BlockMultiVector< SC, LO, GO, NO >	BlockMultiVector_Type
typedef Teuchos::RCP< BlockMultiVector_Type >	BlockMultiVectorPtr_Type
typedef Teuchos::RCP< const BlockMultiVector_Type >	BlockMultiVectorConstPtr_Type
typedef Preconditioner< SC, LO, GO, NO >	Preconditioner_Type
typedef Teuchos::RCP< Preconditioner_Type >	PreconditionerPtr_Type
typedef Teuchos::RCP< const Preconditioner_Type >	PreconditionerConstPtr_Type
typedef BCBuilder< SC, LO, GO, NO >	BC_Type
typedef Teuchos::RCP< BC_Type >	BCPtr_Type
typedef Teuchos::RCP< const BC_Type >	BCConstPtr_Type
typedef FE< SC, LO, GO, NO >	FEFac_Type
typedef Teuchos::RCP< FEFac_Type >	FEFacPtr_Type
typedef Teuchos::RCP< const FEFac_Type >	FEFacConstPtr_Type
typedef Teuchos::ParameterList	ParameterList_Type
typedef Teuchos::RCP< ParameterList_Type >	ParameterListPtr_Type
typedef Teuchos::RCP< Stratimikos::DefaultLinearSolverBuilder >	LinSolverBuilderPtr_Type
typedef Teuchos::RCP< const Stratimikos::DefaultLinearSolverBuilder >	LinSolverBuilderConstPtr_Type
typedef Teuchos::Comm< int >	Comm_Type
typedef Teuchos::RCP< const Comm_Type >	CommConstPtr_Type
typedef Teuchos::ArrayRCP< GO >	GOVecPtr
typedef std::vector< std::string >	string_vec_Type
typedef Teuchos::RCP< Thyra::PreconditionerBase< SC > >	ThyraPrecPtr_Type
using	ThyraTypes = ThyraTypedefs<SC>
using	ThyraLinOpPtr_Type = Teuchos::RCP<typename ThyraTypes::ThyraOp_Type>

Public Member Functions
	Problem (CommConstPtr_Type comm)
	Problem (ParameterListPtr_Type &parameterList, CommConstPtr_Type comm)
virtual void	info ()=0
virtual int	getNonlinearIterationStep () const
void	infoProblem ()
void	infoParameter (bool full=true, std::string="empty")
void	addVariable (const DomainConstPtr_Type &domain, std::string FEType, std::string name, int dofsPerNode)
void	addRhsFunction (RhsFunc_Type func)
void	addRhsFunction (RhsFunc_Type func, int i)
RhsFunc_Type &	getRhsFunction (int i)
virtual void	assemble (std::string type) const =0
void	assembleSourceTerm (double time=0.) const
void	assembleVolumeTerm (double time) const
void	assembleSurfaceTerm (double time) const
bool	hasSourceTerm () const
int	solve (BlockMultiVectorPtr_Type rhs=Teuchos::null)
void	setupPreconditioner (std::string type="Monolithic") const
void	initializePreconditioner (std::string type="Monolithic") const
void	addBoundaries (const BCConstPtr_Type &bcFactory)
void	setBoundaries (double time=.0) const
void	setBoundariesRHS (double time=.0) const
void	setAllDirichletZero (BlockMultiVectorPtr_Type rhs) const
void	setBoundariesSystem () const
void	initializeProblem (int nmbVectors=1)
void	initializeVectors (int nmbVectors=1)
BlockMultiVectorPtr_Type	getRhs ()
BlockMultiVectorPtr_Type	getRhs () const
BlockMultiVectorPtr_Type	getSolution ()
BlockMatrixPtr_Type	getSystem () const
PreconditionerPtr_Type	getPreconditioner ()
PreconditionerConstPtr_Type	getPreconditionerConst () const
void	setPreconditionerThyraFromLinOp (ThyraLinOpPtr_Type precLinOp)
void	initializeSolverBuilder () const
bool	getVerbose () const
FEFacConstPtr_Type	getFEFactory ()
BCConstPtr_Type	getBCFactory ()
DomainConstPtr_Type	getDomain (int i) const
DomainConstPtr_vec_Type	getDomainVector () const
std::string	getFEType (int i) const
std::string	getVariableName (int i) const
int	getDofsPerNode (int i) const
ParameterListPtr_Type	getParameterList () const
void	addToRhs (BlockMultiVectorPtr_Type x) const
BlockMultiVectorPtr_Type	getSourceTerm ()
void	initSolutionWithVector (MultiVector_Type &mv)
LinSolverBuilderPtr_Type	getLinearSolverBuilder () const
CommConstPtr_Type	getComm () const
virtual void	getValuesOfInterest (vec_dbl_Type &values)=0
virtual void	computeValuesOfInterestAndExport ()=0
void	addParemeterRhs (double para)
void	changeAssFELinearization (std::string linearization)
double	calculateH1Norm (MultiVectorConstPtr_Type mv, int blockId1=0, int blockId2=0, int domainInd=0)
double	calculateL2Norm (MultiVectorConstPtr_Type mv, int domainInd=0)

Public Attributes
int	dim_
CommConstPtr_Type	comm_
BlockMatrixPtr_Type	system_
BlockMultiVectorPtr_Type	rhs_
BlockMultiVectorPtr_Type	solution_
PreconditionerPtr_Type	preconditioner_
LinSolverBuilderPtr_Type	linearSolverBuilder_
bool	verbose_
std::vector< RhsFunc_Type >	rhsFuncVec_
vec_dbl_Type	parasSourceFunc_

Protected Attributes
ParameterListPtr_Type	parameterList_
DomainConstPtr_vec_Type	domainPtr_vec_
string_vec_Type	domain_FEType_vec_
string_vec_Type	variableName_vec_
BCConstPtr_Type	bcFactory_
FEFacPtr_Type	feFactory_
std::vector< int >	dofsPerNode_vec_
BlockMultiVectorPtr_Type	sourceTerm_

Member Function Documentation

addRhsFunction() [1/2]

template<class SC, class LO, class GO, class NO>

void FEDD::Problem< SC, LO, GO, NO >::addRhsFunction

(

RhsFunc_Type

func

)

Add right hand side function for each block, if you want to skip a block add a dummy function -> Error Warning. In case initializeProblem() is called beforehand the rhsVec is already initialized with a certain size. --> This leads to a problem, if addRhsFunction is called after, as it is a push_back operation.

Here is the call graph for this function:

Here is the caller graph for this function:

addRhsFunction() [2/2]

template<class SC, class LO, class GO, class NO>

void FEDD::Problem< SC, LO, GO, NO >::addRhsFunction	(	RhsFunc_Type	func,
		int	i )

Add right hand side function for block i

Here is the call graph for this function:

assemble()

template<class SC = default_sc, class LO = default_lo, class GO = default_go, class NO = default_no>

virtual void FEDD::Problem< SC, LO, GO, NO >::assemble ( std::string type ) const

pure virtual

Implemented in FEDD::DiffusionReaction< SC, LO, GO, NO >, FEDD::FSI< SC, LO, GO, NO >, FEDD::FSI< SC, LO, GO, NO >, FEDD::NavierStokes< SC, LO, GO, NO >, FEDD::NavierStokes< SC, LO, GO, NO >, FEDD::NavierStokesAssFE< SC, LO, GO, NO >, FEDD::NonLinearProblem< SC, LO, GO, NO >, FEDD::NonLinearProblem< default_sc, default_lo, default_go, default_no >, FEDD::NonLinearProblem< SC, LO, GO, NO >, FEDD::NonLinElasAssFE< SC, LO, GO, NO >, FEDD::NonLinElasticity< SC, LO, GO, NO >, FEDD::NonLinElasticity< SC, LO, GO, NO >, FEDD::NonLinLaplace< SC, LO, GO, NO >, and FEDD::NonLinTPM< SC, LO, GO, NO >.

getNonlinearIterationStep()

template<class SC = default_sc, class LO = default_lo, class GO = default_go, class NO = default_no>

virtual int FEDD::Problem< SC, LO, GO, NO >::getNonlinearIterationStep ( ) const

inlinevirtual

If we have a Nonlinear Problem, we need the opportunity to know about the current Newton Step -> override in NonLinearProblem Default implementation just returns 0

Reimplemented in FEDD::NonLinearProblem< SC, LO, GO, NO >, FEDD::NonLinearProblem< default_sc, default_lo, default_go, default_no >, and FEDD::NonLinearProblem< SC, LO, GO, NO >.

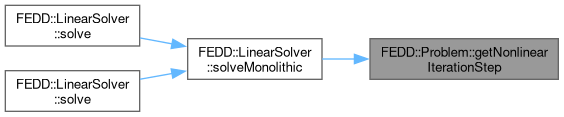

Here is the caller graph for this function:

getRhsFunction()

template<class SC, class LO, class GO, class NO>

RhsFunc_Type & FEDD::Problem< SC, LO, GO, NO >::getRhsFunction

(

int

i

)

Adds rhs function and specifies it so certain flag

Here is the call graph for this function:

Here is the caller graph for this function:

getValuesOfInterest()

template<class SC = default_sc, class LO = default_lo, class GO = default_go, class NO = default_no>

virtual void FEDD::Problem< SC, LO, GO, NO >::getValuesOfInterest ( vec_dbl_Type & values )

pure virtual

Implemented in FEDD::Elasticity< SC, LO, GO, NO >, FEDD::FSI< SC, LO, GO, NO >, FEDD::FSI< SC, LO, GO, NO >, FEDD::NavierStokes< SC, LO, GO, NO >, FEDD::NavierStokes< SC, LO, GO, NO >, FEDD::NavierStokesAssFE< SC, LO, GO, NO >, FEDD::NonLinearProblem< SC, LO, GO, NO >, FEDD::NonLinearProblem< default_sc, default_lo, default_go, default_no >, FEDD::NonLinearProblem< SC, LO, GO, NO >, FEDD::NonLinElasAssFE< SC, LO, GO, NO >, FEDD::NonLinElasticity< SC, LO, GO, NO >, FEDD::NonLinElasticity< SC, LO, GO, NO >, FEDD::NonLinLaplace< SC, LO, GO, NO >, and FEDD::NonLinTPM< SC, LO, GO, NO >.

Member Data Documentation

sourceTerm_

template<class SC = default_sc, class LO = default_lo, class GO = default_go, class NO = default_no>

BlockMultiVectorPtr_Type FEDD::Problem< SC, LO, GO, NO >::sourceTerm_

protected

sourceTerm_: Is a source term or a surface integral. Fill parasSourceFunc_ for additional parameters

---

The documentation for this class was generated from the following files:

• feddlib/problems/abstract/LinearProblem_decl.hpp
• feddlib/problems/abstract/Problem_decl.hpp
• feddlib/problems/abstract/Problem_def.hpp
